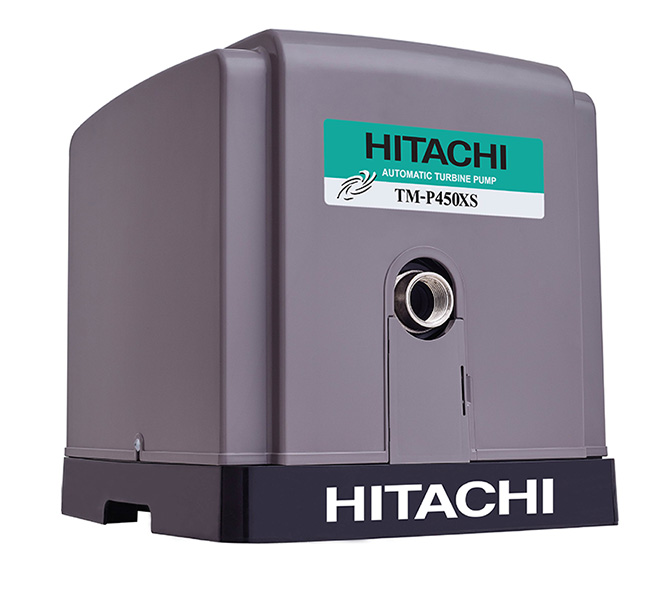

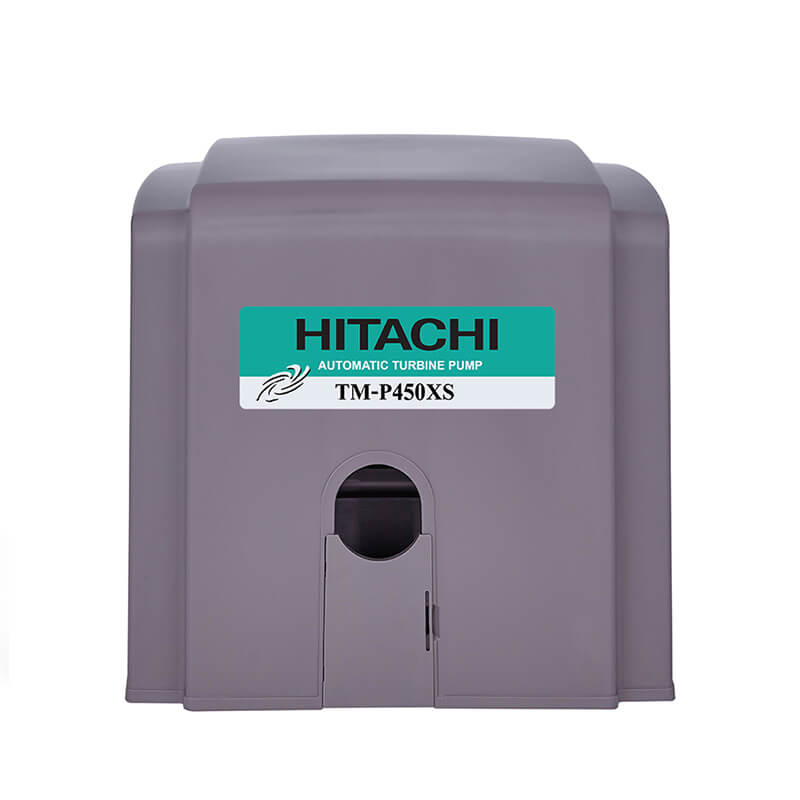

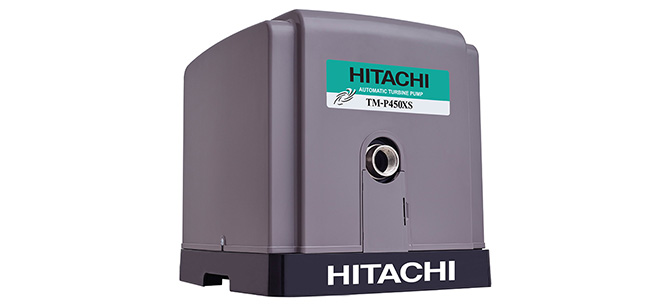

TM-P450XS New

Turbine Type
450W

Features

Japanese Standard Quality

Japanese Standard Quality

Having more than 100 years of water pump manufacturing experience, these exceptional pumps are designed to deliver high performance and reliability.

Environment-Friendly Design

Every units are certified with the stringent RoHS standard, as well as ISO 9001 for factory quality management, and ISO 14001 for environmental management.

Reliable, Long-Lasting Safety

Reliable, Long-Lasting Safety

Especially designed for durability, longer service life and safety.

Reliable, Advanced Motor

Hitachi’s motors are widely regarded for their high performance and long-lasting durability.

Rust-Resistant Bolts

The stainless bolts are rust-resistant and contribute to ease of maintenance throughout the pump’s service life.

Thermal Relay

The thermal relay is an important mechanism inside Hitachi motors. It automatically disengages the motor when the temperature rises above the preset level and re-engages the motor when it is safe to do so.

Water Temp Relay

The water temp relay temporarily pauses operation when it becomes too hot. This prevents deformation of parts due to overheating.

Ventilation Fan

Hitachi’s specially designed vent fan works wonders in ventilating heat to ensure more effective operation and thereby prolong the motor’s life.

Heat-Resistant Rubber Seals

Seals are made of heat-resistant materials. They are less likely to fracture so you will not be troubled by water leakage.

Specially Designed Pump Head

The single-piece, seamless, molded pump head made from special plastic and first-grade materials frees you from worries of rust and leakage while giving you superior water output.

Specially Designed Pump Cover

The pump cover has been newly designed to comply with the stringent IEC safety standard. The cover fits snugly on the body, enhancing safety during operation. A heat ventilation duct at the back also helps the unit to work more effectively.

Lower Noise Operation

Lower Noise Operation

Quiet operation of 51dB with less unpleasant noise, witch is also suitable for residential area (51dB : data measured at Ht 18m with TM-P600XX)

Big Water Capacity

Big Water Capacity

Smooth water discharge from multiple water taps even during the evening when water consumption hits a peak.

Sand & Rust Resistance

Sand & Rust Resistance

The wide blades of turbine pumps provide resistance to foreign objects (dust/sand/rust from pipes).

Constant Water Pressure

Constant Water Pressure

Life-Extending Pressure-Stabilized Unit

This unit controls the flow of water for longer switch and pump’s service life. You will no longer be troubled by irregular or intermittent water supply.

Bladder Tank

The bladder tank is lined with a diaphragm of rubber sheets and filled with nitrogen.
These advanced Hitachi technologies ensure stable water pressure and convenience since there is no need to refill the gas or worry about rust throughout the tank’s service life.

Tech Spec

Series Turbine Type
Model TM-P450XS
Motor Watt (W) 450W
Total Suction Head* (m) 5
Total Discharge Head (m) 20
Capacity (L/min) 80 (Max.90)
Pressure Switch (kg/cm2 ) On:2.1
Off:2.5
Suction Pipe (mm) 25 (1")
Noise Level (dB) 50
Discharge Pipe (mm) 25 (1")
Taps Used Simultaneously**(Average) 10
Dimensions (W×L×H, mm) 330x375x360
Weight (Net/Gross, kg) 18/20
Specifications and designs are subject to change without notice.
Colour tone of actual products may differ from those shown on the websıte.
